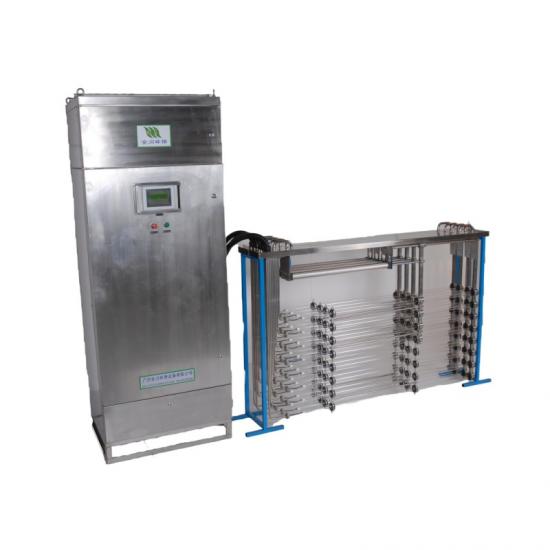

Low Pressure Open Channel UV System for waste water plant
Purevita UV Sterilization Technology utilizes a specially designed high-intensity, high-efficiency, and long-life C-band 253.6nm ultraviolet light generator to produce powerful UV irradiation for water streams. This UV light destroys the DNA structure of pathogens in water, rendering them inactive and achieving sterilization. The principle of UV sterilization relies on photon energy: shorter wavelengths correspond to higher photon energy, resulting in stronger germicidal efficacy. At 253.6nm, UV light rapidly and efficiently disrupts bacterial DNA, preventing replication and ensuring effective water disinfection.
Water flow:
10,000m3/dayNumber of Lamps:
24~32Number of Modules:
4 setsTotal Power:
10kwPower of Each Lamp:
320wLow Pressure Open Channel UV System for waste water plant
Brief Introduction

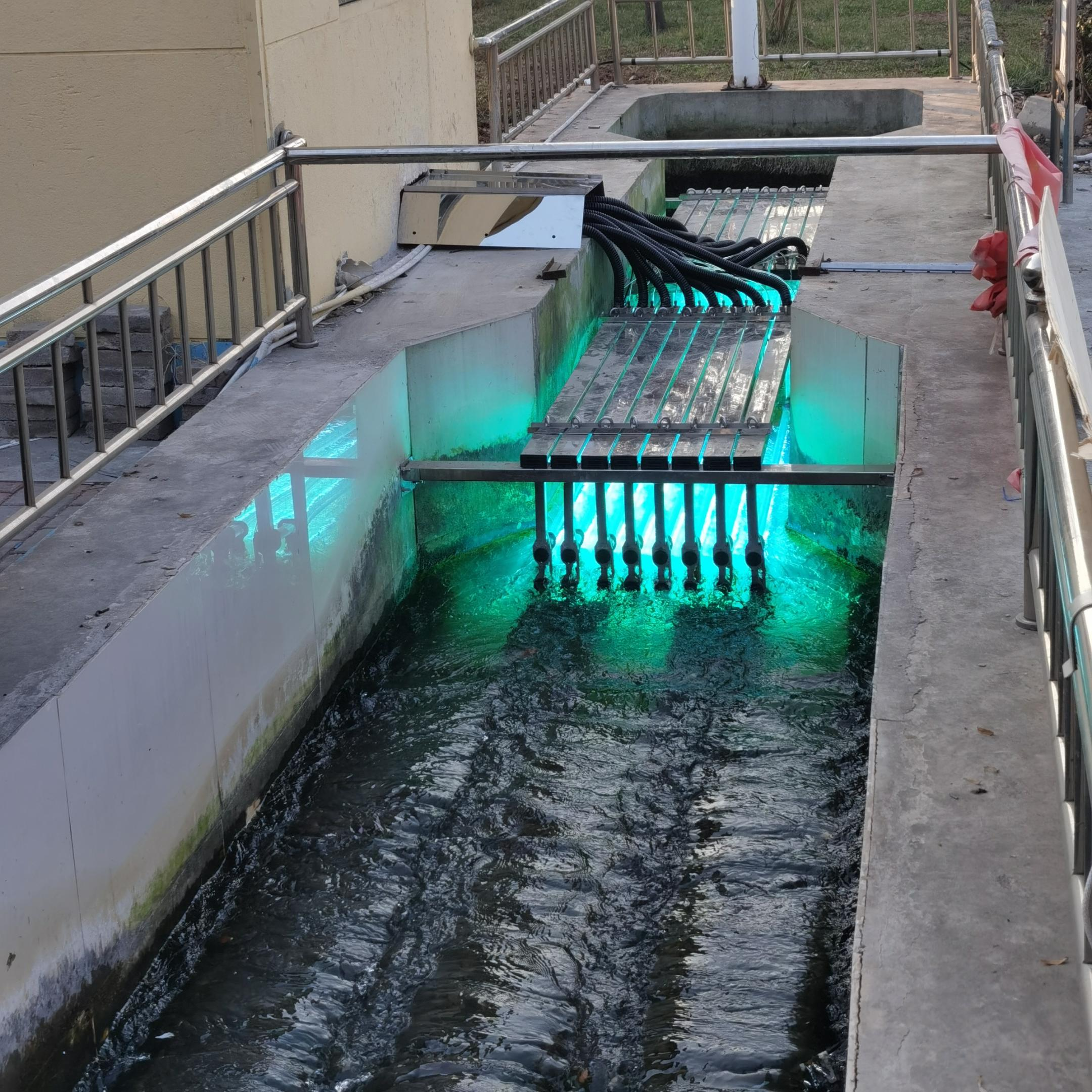

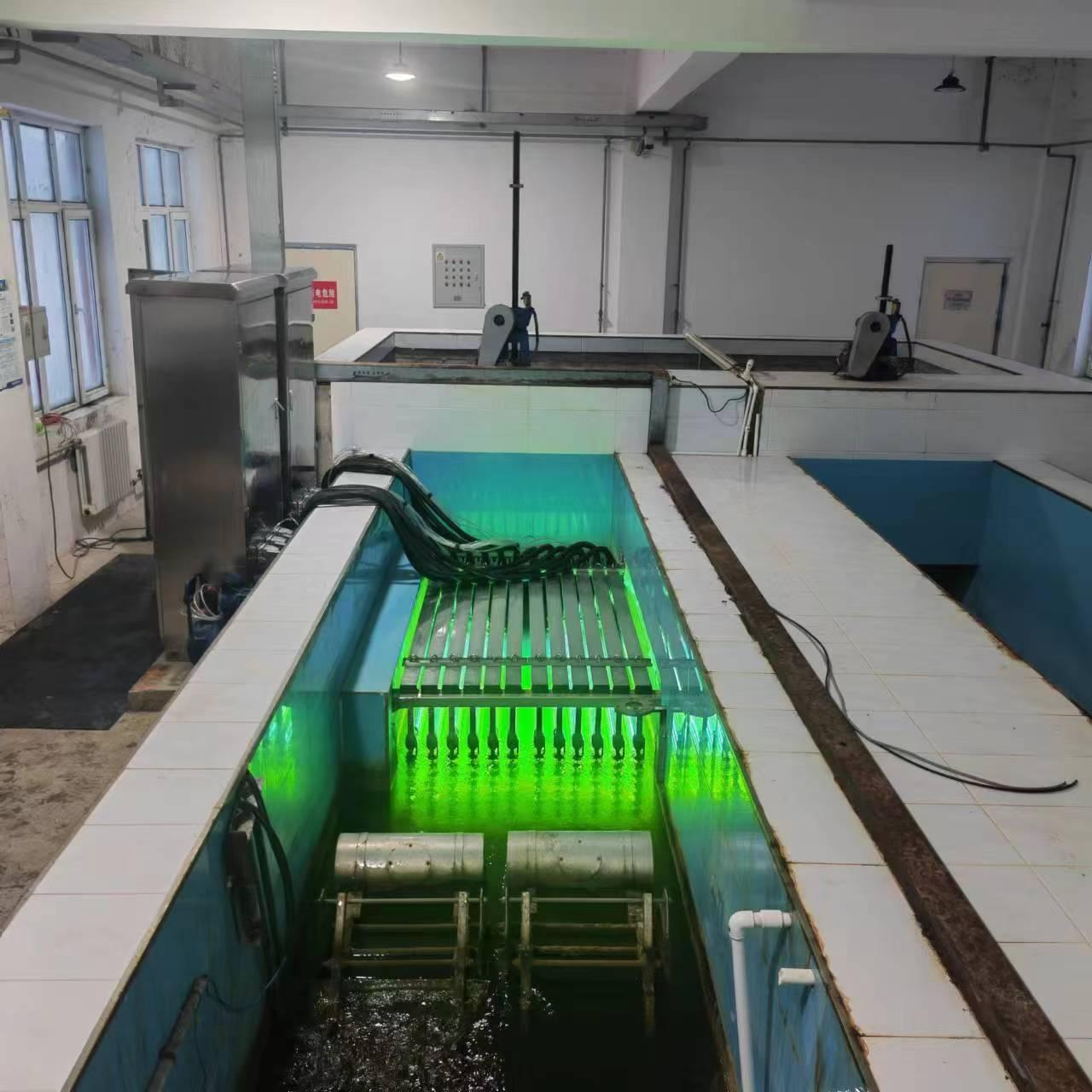

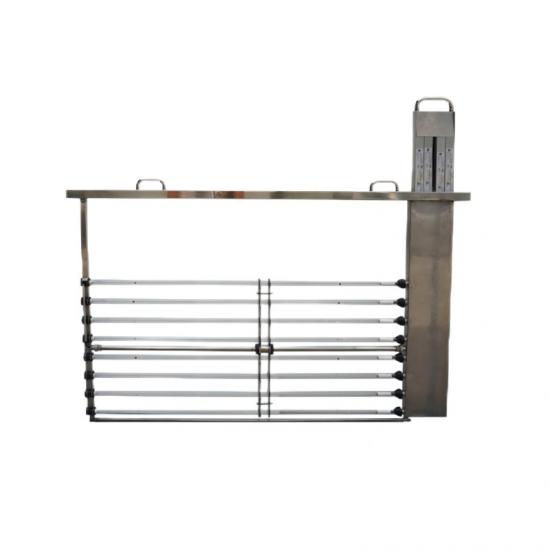

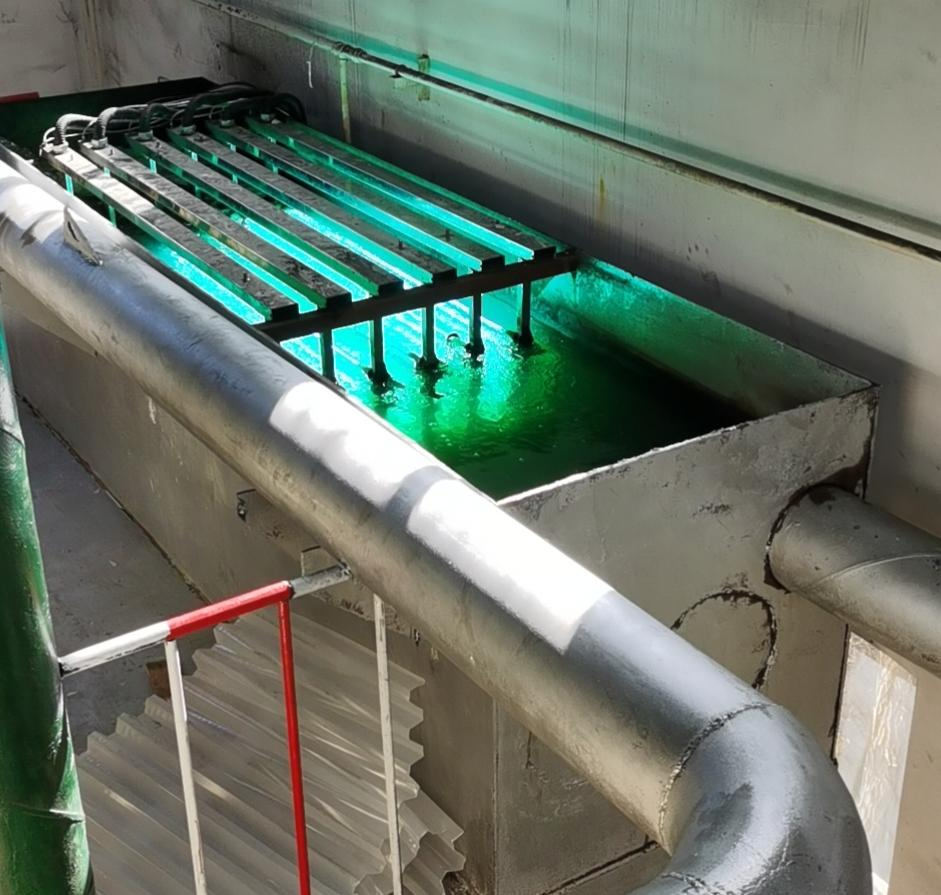

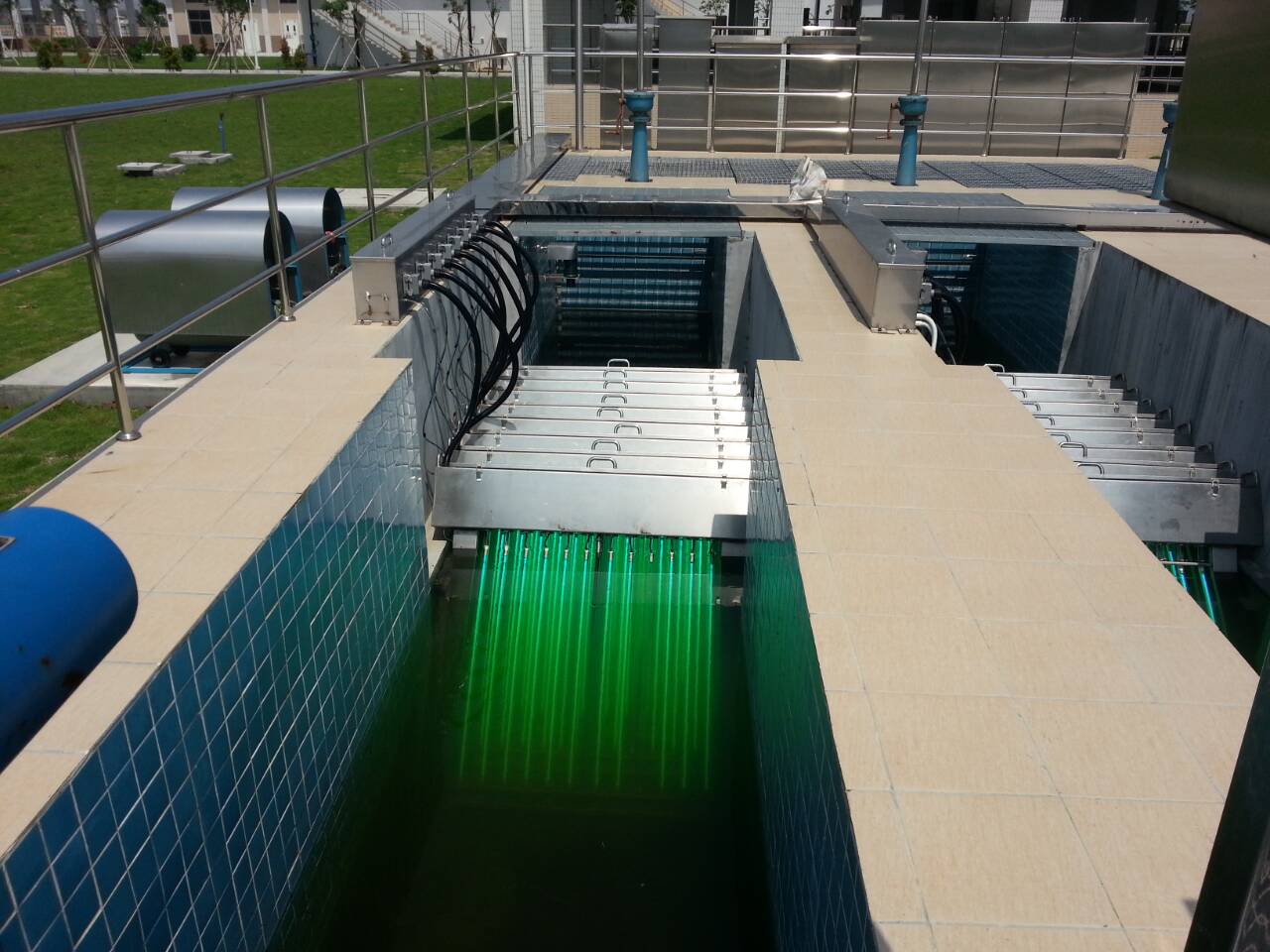

The sewage treated by the Low Pressure Open Channel UV System for waste water plant passes through the UV system module arranged in the slotted ditch to sterilize and disinfect the water flowing through the ditch, thereby solving the problem of excessive bacteria indicators in the treated sewage. The open channel ultraviolet disinfection system has a fast sterilization speed, good effect, high sterilization efficiency, low operating cost , and no secondary pollution caused by disinfection .
Optimized for hydraulic performance, this design ensures uniform flow, minimal head loss, and consistent UV dose distribution, guaranteeing high disinfection efficiency under varying conditions. Modular scalability makes it ideal for new installations or retrofits.
Our Proprietary Technologies
1. Parallel Central Drive Cleaning Technology – Eliminates quartz sleeve cracking caused by unilateral force in traditional single-drive systems.
2. Adaptive Flexible Cleaning Ring Technology – Resolves sleeve “jamming” due to temperature variations. A dual-thickness cleaning ring design eliminates dead zones and ensures thorough cleaning. Double-layer rings enhance quartz sleeve maintenance.
3. Passive Flow-Controlled Flap Gate Technology – Automatically adjusts channel water levels based on flow rate. An electric closed-loop control system maintains optimal disinfection channel height for consistent efficacy.
Specification of open channel UV disinfection system

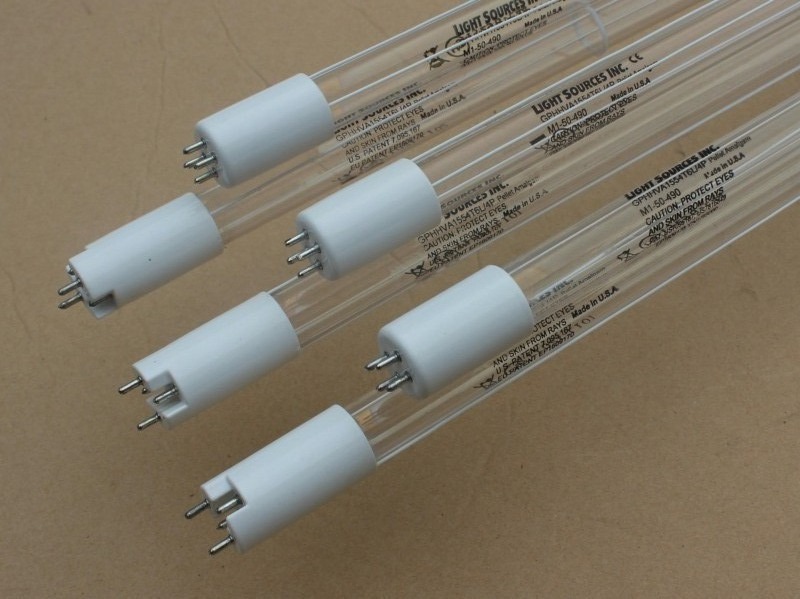

Light Source: Low-Pressure Mercury Amalgam Lamps

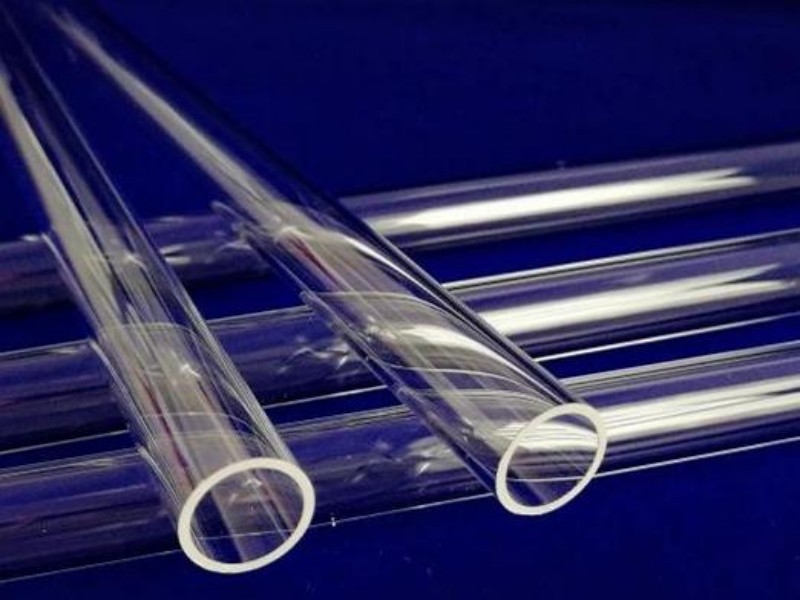

Quartz Sleeves

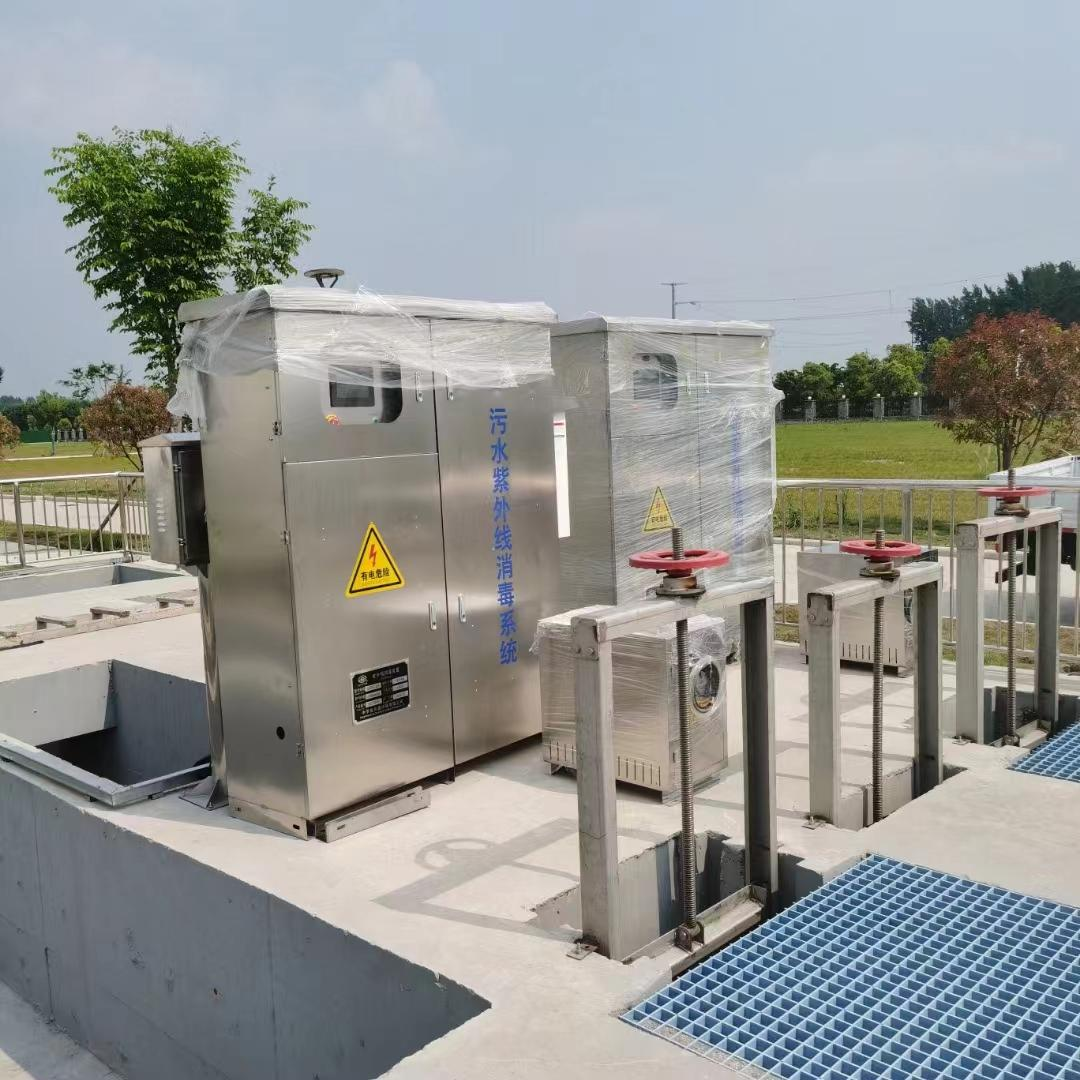

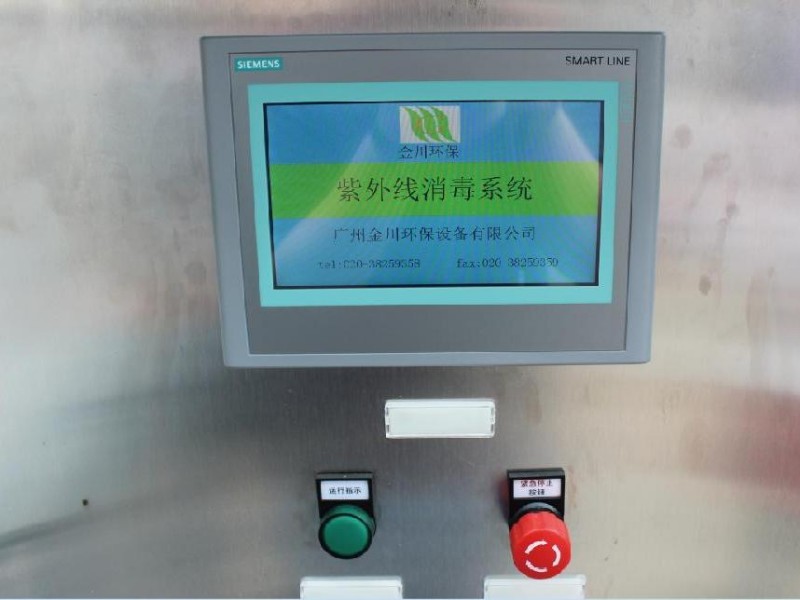

Control Cabinet
