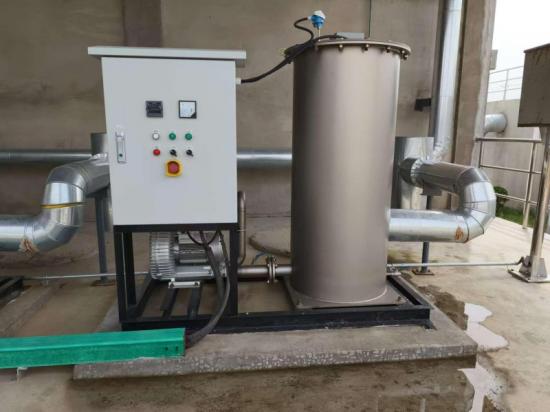

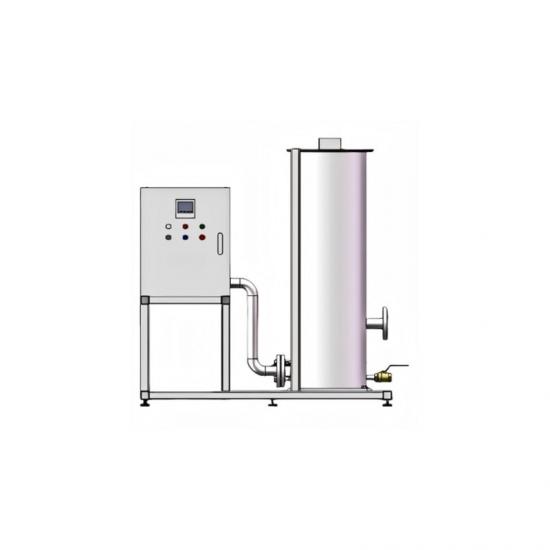

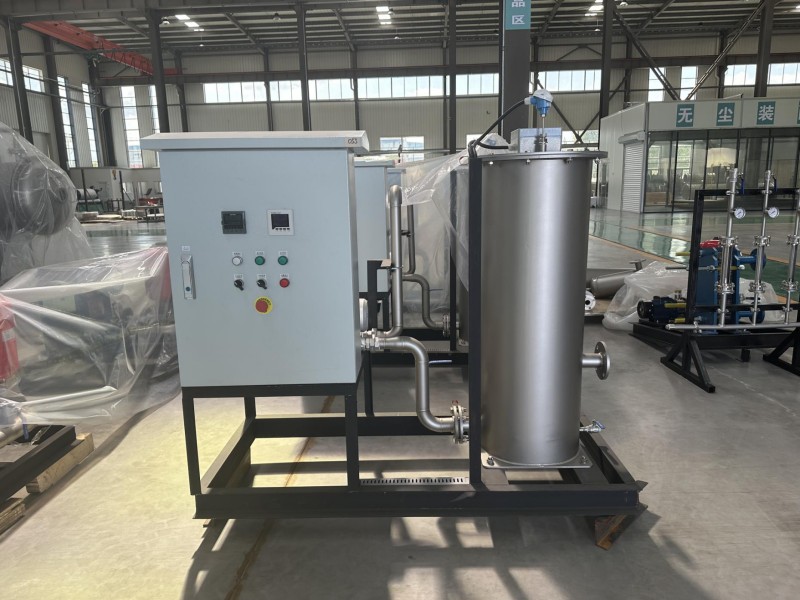

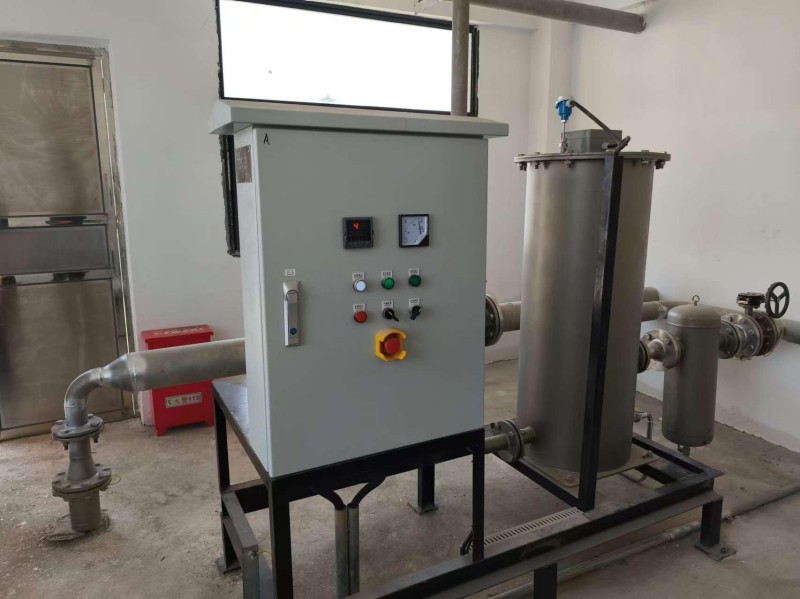

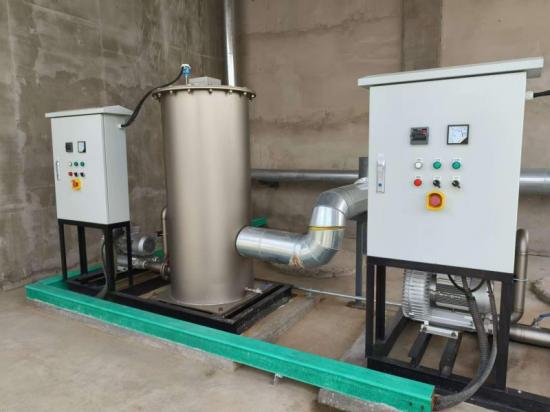

Exhaust Destroyer for Ozone Generator

The ozone generation chamber and power cabinet are designed as separate units, allowing flexible placement and easy installation. Suitable for large-scale ozone generators.

The ozone generation chamber and power cabinet are mounted on the same skid- mounted base. The generation chamber has a horizontal structure, with 1.5 meters of clearance required on both sides of the unit for maintenance, allowing for easy servicing and up keep.

The sodium hypochlorite dosing system is configured with a softened water dilution function todilute the storage concentration of sodium hypochlorite to less than 5%

Purevita UV Sterilization Technology utilizes a specially designed high-intensity, high-efficiency, and long-life C-band 253.6nm ultraviolet light generator to produce powerful UV irradiation for water streams. This UV light destroys the DNA structure of pathogens in water, rendering them inactive and achieving sterilization. The principle of UV sterilization relies on photon energy: shorter wavelengths correspond to higher photon energy, resulting in stronger germicidal efficacy. At 253.6nm, UV light rapidly and efficiently disrupts bacterial DNA, preventing replication and ensuring effective water disinfection.

The Purevita sodium hypochlorite generator generates a 0.8 % sodium hypochlorite solution through the electrolysis of brine, consuming only water, salt and electricity. By producing hypochlorite on-site and on-demand, the system eliminates concerns associated with transportation and storage of chlorine gas or commercial sodium hypochlorite solutions, making it ideal for any medium to large scale application requiring chlorination.

Coating titanium anode is also referred to as Mixed Metal Oxide (MMO) titanium anode and Dimensionally Stable Anode (DSA), as well as Dimensionally Stable Electrode (DSE). By brushing precious metal coating on the titanium substrate, it can have a good electric catalytic activity and electrical conductivity.

The ultraviolet disinfector integrates comprehensive sciences such as optics, microbiology, mechanics, chemistry, electronics, and fluid mechanics. The UV-C ultraviolet light generated by the imported or high-quality domestically produced high-efficiency, high-intensity, and long-life UV-C ultraviolet light generating device is used to irradiate the flowing water. When the bacteria and viruses in the water are irradiated with a sufficient dose of UV-C ultraviolet light (wavelength 253.7nm), their cell DNA and cell structure are destroyed, and cell regeneration cannot proceed, thereby achieving the effect of water disinfection and purification. The ultraviolet light with a wavelength of 185nm can also decompose organic molecules in the water, produce hydroxyl free radicals, and oxidize organic molecules in the water into CO₂ and H₂O , and achieve the effect of removing TOC.

The ozone generation chamber and power cabinet are designed as separate units, allowing flexible placement and easy installation. Suitable for large-scale ozone generators.
