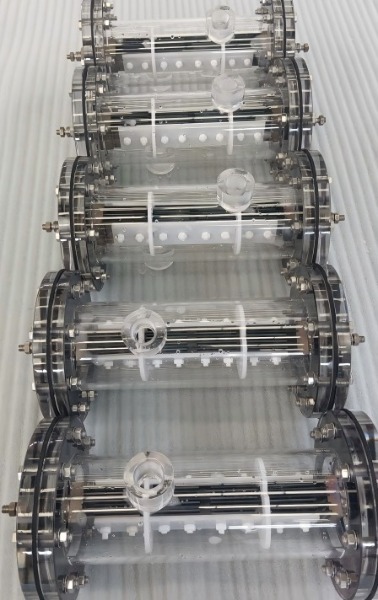

50g/h DSA Coating Horizontal Titanium Electrolytic cell for Sodium Hypochlorite Generator

Electrolyser(electrodes or electrolysis cell) is designed for producing 8000ppm sodium hypochlorite through 0.3% brine, which is stable and safty running onsite. The electrodes is made of pure Titanium, with ruthenium & iridium oxide coating which ensure over 5 years coating life, over 18 years titanium base material, reduce the chlorine evolution potential and electricity consumption.

The polarity reverse titanium electrolytic cell is utilized in sodium hypochlorite generators. Sodium hypochlorite solution is produced by electrolyzing a sodium chloride solution without a membrane and then diluting it. This technology is suitable for various applications including sodium hypochlorite generators, water treatment equipment, and electrolytic disinfection equipment.

The electrolyzer is fed a DC current from the rectifier and electrolyzes the diluted brine into sodium hypochlorite solution. Chlorine evolves at the anode surface, while hydrogen and hydroxide evolves at the cathode surface. The secondary reaction of chlorine, sodium and the hydroxyl ion nets sodium hypochlorite (chlorine bleach) at a 0.8% solution. Below 1%, hypo is classified as a non-hazardous chemical although still a very effective disinfectant. The only by-product, hydrogen, is safely vented into the atmosphere.
